Meir Concealed 1 Outlet Round Single Lever Mixer Valve & Concealed Body, Brushed Nickel

Meir Concealed 1 Outlet Round Single Lever Mixer Valve & Concealed Body, Brushed Nickel

The concealed mixer valve with single lever (non-thermostatic) can be used for multiple applications including basin, shower, bath.

Set contains:

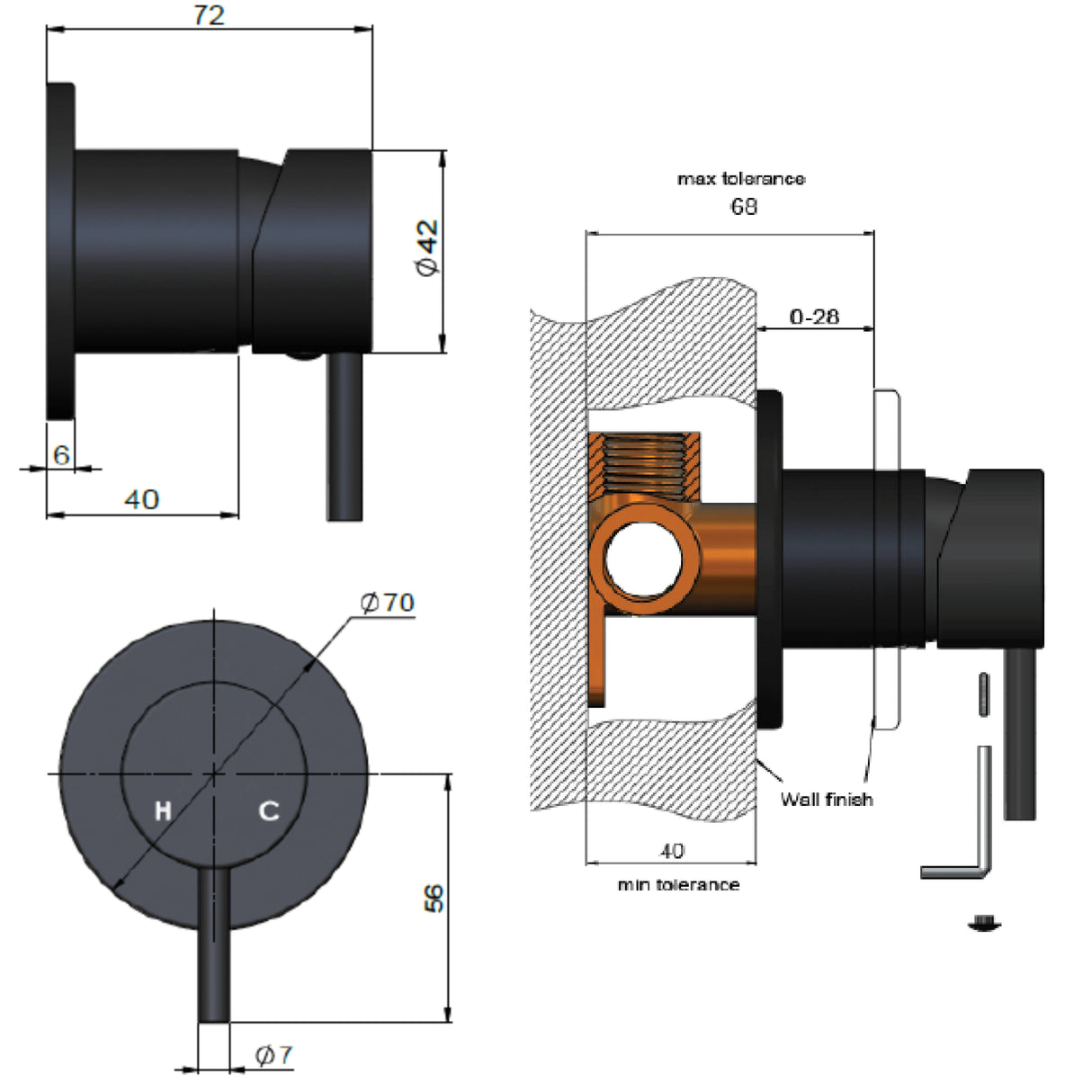

• Finished trim set Brushed Nickel MW03S-FIN-PVDBN

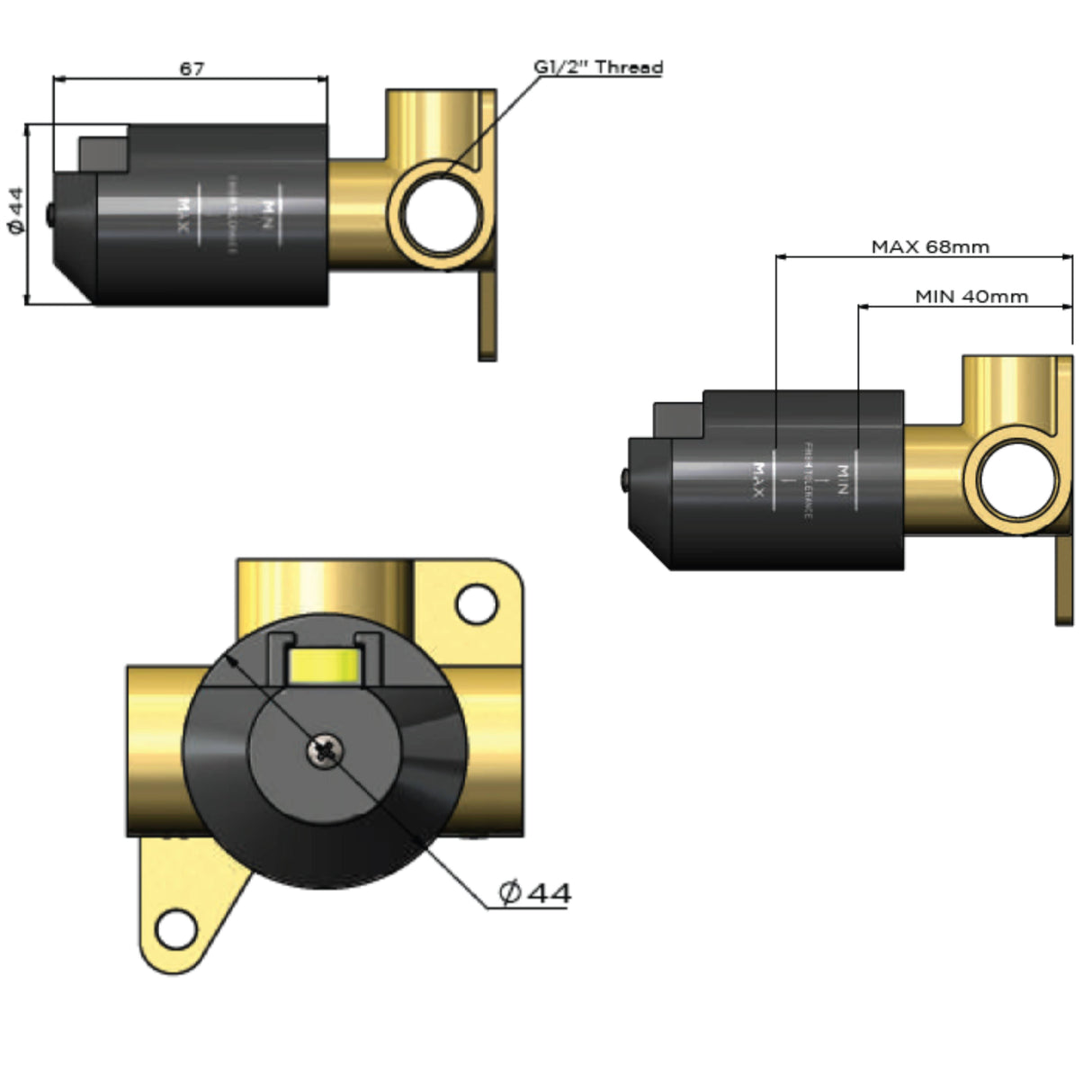

• Concealed brass body MW13BDY

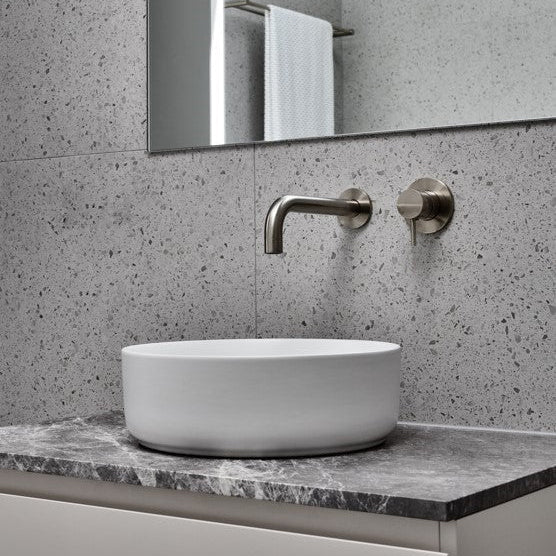

For basin applications, use the Meir wall mounted spout MS05-PVDBN, which is available as a complete set MW03S-SET-PVDBN.

For shower / bath applications, use any of the following;

• Meir rigid riser shower set MZ0704-R-PVDBN
• Meir round hand shower set with fixed bracket MZ08-R-PVDBN
• Meir pull-out hand shower for bath MZ09-R-PVDBN
• Meir sliding rail kits MZ04BN-SET-PVDBN, MZ0402-R-PVDBN
• Meir round shower head 200mm MH04-PVDBN, 300mm MH06-PVDBN plus either ceiling arm 300mm MA07-300-PVDBN, ceiling arm 150mm MA07-150-PVDBN, wall shower arm 400mm MA09-400-PVDBN
• Meir bath filler waste & overflow MP04-FO-PVDBN plus waste MP04F-UNI-PVDBN

Flow rate 18L p/m at 3 bar pressure.

Downloads :

MW03S-FIN-V2_Meir_Datasheet

MW13BDY-V2_Meir_Datasheet

For shower kits, see 'You may need'.
